Household Glassware Machinery
SM-J60 glass neck and mouth shaping machine. Precision flame-working with interchangeable forming tools for consistent neck profiles on glass bottles, hookah stems, and specialty glass containers.

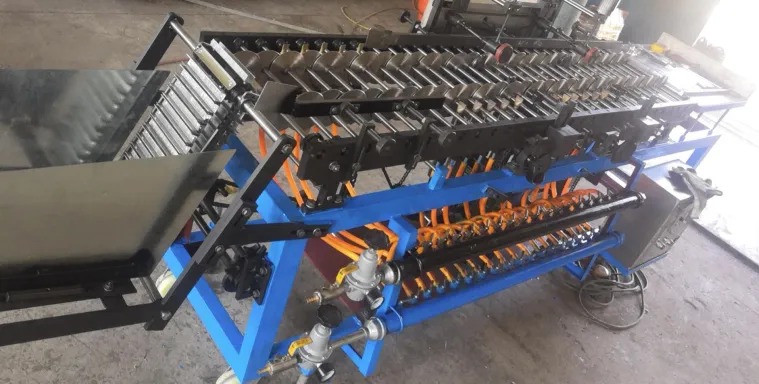

The SM-J60 Neck Mouth Shaping Machine is a glass forming machine designed for shaping the neck and mouth openings of glass bottles, jars, and tube-type containers. The neck and mouth geometry is critical to the functionality of glass packaging — determining cap and closure compatibility, pouring characteristics, and the visual quality of the finished product.
The SM-J60 applies controlled flame-heating to soften the glass tube neck zone, then uses forming tools to shape the mouth profile, rim, and neck taper to precise dimensions. Multi-station operation allows continuous production with consistent shaping quality across batches.
This machine is used by glass bottle manufacturers producing specialty glass containers, hookah stem components, cosmetic packaging, and pharmaceutical glass bottle neck profiles that require precise mouth dimensions for cap and stopper compatibility.
| Parameter | Value |
|---|---|
| Model | SM-J60 |
| Product Type | Glass Bottle / Tube Neck and Mouth |
| Glass Type | Borosilicate / Soda-lime |
| Power | 0.75 kW |
| Gas Consumption | LPG 1.5 kg/h |
| Oxygen Consumption | 18 L/h |
| Control System | PLC controlled |
| Forming Tools | Interchangeable for different neck profiles |
The SM-J60 shapes glass bottle necks and mouths for:
Video coming soon. Contact us to request a product demonstration.
The SM-J60 Neck Mouth Shaping Machine works with borosilicate and soda-lime glass tubes to shape the neck and mouth openings of glass bottles, jars, and tubes. It handles a range of tube diameters suitable for standard bottle neck sizes. Contact us with your specific bottle neck dimensions.
The SM-J60 features a multi-station design for continuous neck and mouth shaping operations. Contact us for output estimates based on your specific bottle neck geometry and glass tube diameter.
Yes. Forming tooling is interchangeable for different neck geometries, mouth diameters, and rim profiles. Visit our Custom Orders page to discuss your specific requirements.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
12-month warranty on all machines. Our after-sales team provides 7×24 support. See our After-Sales Support page for full details.
Yes. Free online training, operation manuals, and installation videos are included. On-site training can be arranged on request.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
