Household Glassware Machinery
A fully automatic glass bulb blowing machine producing 600–2,700 pieces per hour. PLC-controlled with a 20-station disc turntable — handles glass tubes from Φ15–Φ100mm for light bulbs, decorative balls, teapots, nursing bottles, and custom glassware.

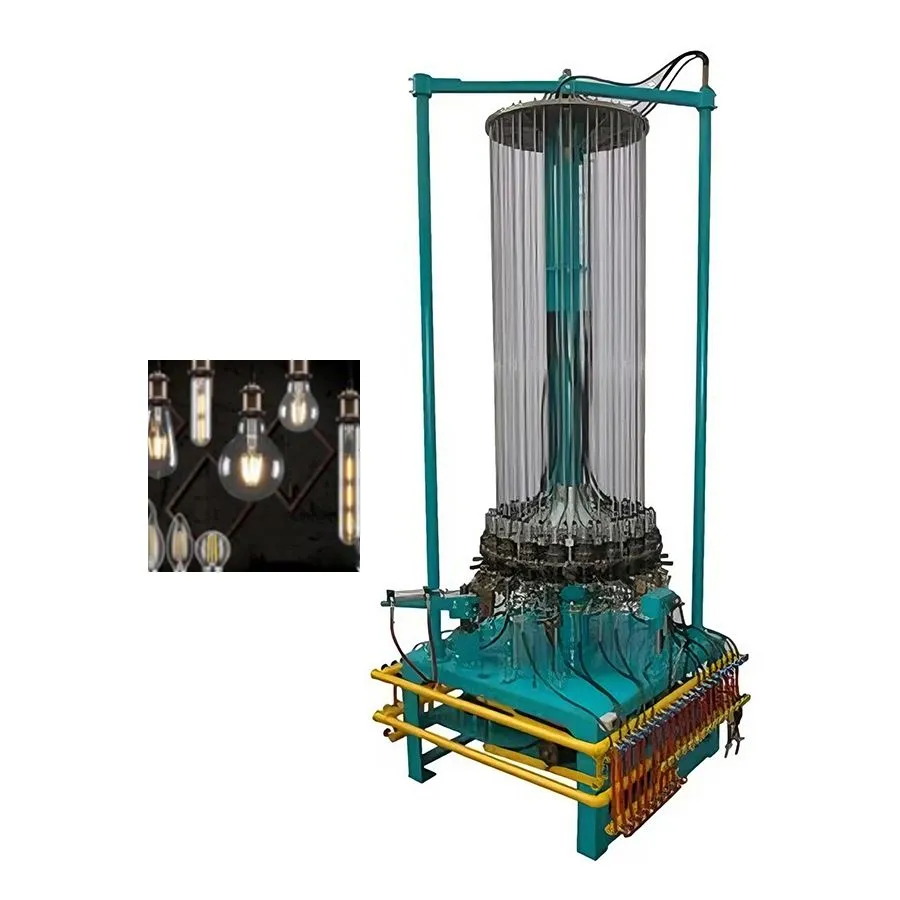

The SM-J53 Glass Bulb Making Machine is a vertical rotary automatic glass blowing machine that handles the entire production process without manual participation. The machine’s intelligent PLC control system clamps the raw glass tube, cuts it, forms the base, and blows the finished item directly in the mold according to preset programs.
Engineered for continuous high-volume output, the SM-J53 is compatible with downstream annealing furnace conveyors and automatic tube loaders for a fully integrated production line. It is widely used across decorative glass, packaging, and laboratory glassware industries.
| Parameter | Value |
|---|---|
| Raw Tube Range | Φ15mm – Φ100mm |
| Output Capacity | 600–2,700 pcs/h |
| Voltage | 380V 3-phase |
| Power | 750W |
| Machine Dimensions | 1,600 × 1,600 × 3,700mm (max) |
| Turntable Stations | 20-station disc-type divider |
| Control System | PLC with intelligent preset programs |
Product demonstration video coming soon. Visit our YouTube channel to see Sea Melody machines in action.
The machine accommodates raw glass tubes from Φ15mm to Φ100mm in diameter. The mold and chuck settings can be adjusted to suit your specific tube dimensions.
The SM-J53 produces a wide range of blown glass items including light bulb housings, decorative glass balls, coffee pots, teapots, nursing bottles, and custom glassware. Product shape is determined by the mold, which can be changed over easily.
Output ranges from 600 to 2,700 pieces per hour depending on the product shape, glass tube diameter, and configured cycle speed.
Yes. The SM-J53 is designed to integrate with automatic glass tube loaders (for unmanned tube feeding) and annealing furnace conveyors (for inline heat treatment). This makes it suitable for a fully automated production line with minimal labor.
Yes — Sea Melody offers custom mold design and machine modifications to suit non-standard products. Visit our Custom Orders page to learn more about our bespoke engineering process.
Sea Melody provides 24/7 remote support with a 5-minute guaranteed response time, plus online video commissioning, operation manuals, and spare parts supply. See our After-Sales Support page for full details.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
