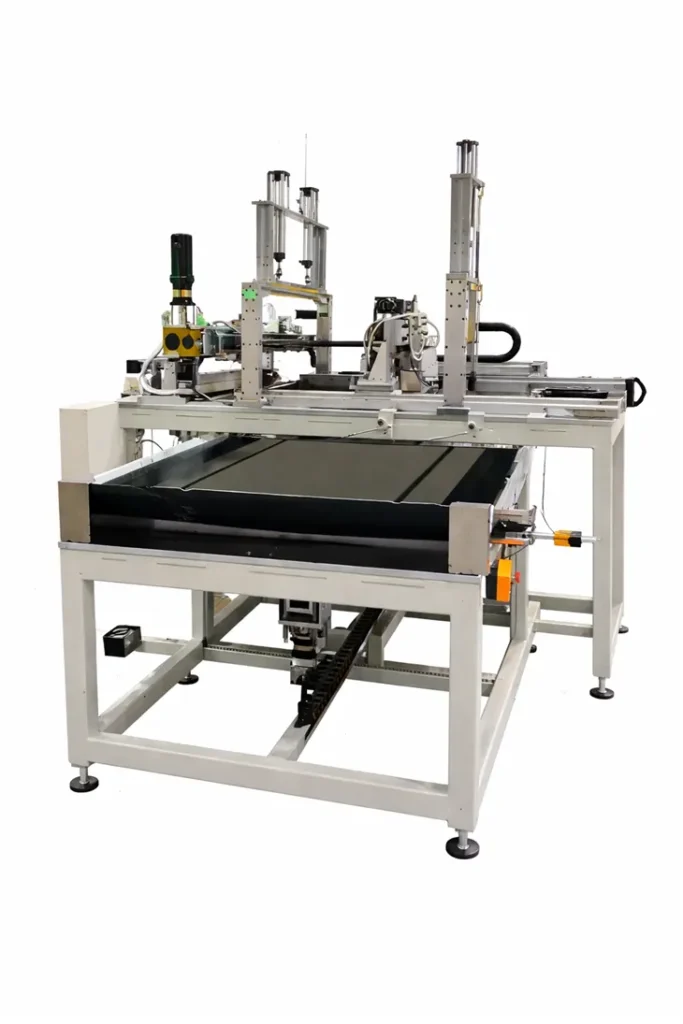

SM-J69A automatic bead cutting machine — a fully automatic, PLC-controlled diamond-blade dry cutter for glass bead and capillary tubes. 2.0–3.8 mm, 600–900 kg/day, only ~5% waste.
A glass bead and capillary tube cutting machine is a machine that cuts thin glass capillary tubing into short, uniform sections at high volume, holding tight length tolerances and clean, flat cut faces across a range of small tube diameters.
The SM-J69A Glass Bead & Capillary Tube Dry Cutting Machine is a fully automatic bead cutting machine for small-diameter glass bead and capillary tubes. Unlike traditional water jet cutters, the SM-J69A uses a dry cutting process — finished products require no water washing or drying after cutting, significantly reducing post-processing time and operational cost. The Panasonic PLC control system enables automation docking with upstream and downstream equipment. For smaller glass beads (under 2.3 mm) or a no-glue pneumatic process, see the SM-J69B Glass Bead Cutting Machine. Every machine is built under Sea Melody’s ISO 9001:2015-certified quality management system.
| Parameter | Value |
|---|---|
| Tube Diameter | 2.0–3.8mm |
| Raw Material Length | 1,030mm |
| Cut Length After Cutting | 1.7–6mm (adjustable) |
| Output | 600–900 kg/day |
| Control | Panasonic PLC |
| Total Power | 3 kW |
| Cutting Tool | Diamond blade (5,000-hour life) |
| Material Loss | ~5% (vs 25–31% traditional) |
| Tube Loading | 212 tubes per batch |
Watch the SM-J69A Automatic Bead Cutting Machine in action above. Visit our YouTube channel to see Sea Melody machines in action.
Yes. The SM-J69A is a fully automatic bead cutting machine for glass bead and capillary tubes. Once tubes are loaded, it automatically straightens and aligns the tube heads, applies adhesive powder, cuts, removes the tail, and discharges finished pieces — no manual cutting required.
Yes. The SM-J69A cuts with a long-life diamond blade rated for about 5,000 hours, giving precise, repeatable cuts with very low material waste (~5%, versus 25–31% for traditional cutting).
Output is 600–900 kg per day depending on cut length and tube size, with a loading capacity of 212 tubes per batch.
Dry cutting eliminates the water washing and drying step required after water jet cutting, reducing cycle time and operational costs. The SM-J69A also uses PLC and mechanical control rather than pneumatics, giving higher output stability and more consistent cut quality than pneumatic water cutters at equivalent tube sizes.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — specifications can be modified for your production requirements. Visit our Custom Orders page to discuss.
This machine requires electrical power only (3 kW). No gas, oxygen, or water is needed — it is a fully dry cutting process.
No — a full operation and maintenance manual is supplied. Remote video training provided free of charge.
7×24 remote support via phone, video call, or messaging. An engineer is assigned before shipment. See our After-Sales Support page for full details.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
