Household Glassware Machinery
SM-J72 12-head double chuck vial making machine. 12–32 stations available. Tube diameter Φ16–32mm, neck ID 12–35mm, output 150–600 pcs/h. Optional auto tube loading. Can be modified for standard bottle mouth/threading.
A glass vial making machine converts borosilicate glass tubing into finished pharmaceutical vials through automated forming, shaping, and cutting.

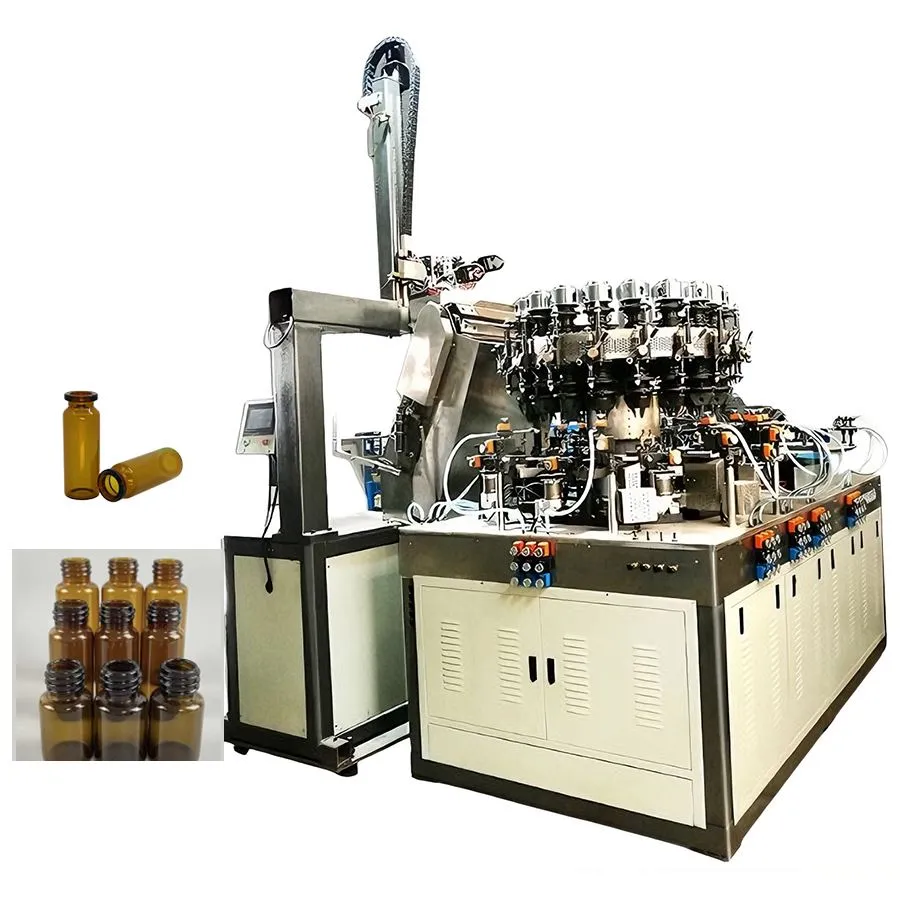

The SM-J72 12-Head Double Chuck Vial Making Machine is a rotating table machine for producing glass vials, medicine bottles, and small glass containers. Glass tubes are clamped simultaneously at both ends by the double-chuck system, ensuring precise centering during high-temperature forming across 12 stations (expandable to 32 stations). Available in multiple models covering different diameter ranges and output requirements. Optional auto tube loading eliminates manual feeding. Can also be configured for standard bottle mouth or threading production.
| Parameter | Value |
|---|---|
| Tube Diameter | Φ16–32mm |
| Tube Length | 60–180mm |
| Neck Inner Diameter | 12–35mm |
| Output | 150–600 pcs/h |
| Stations | 12 standard (up to 32) |
| Power | 1.5 kW |
| Machine Dimensions | 1.40 × 1.80 × 1.70 m |
| Weight | 2,200 kg |
Station count determines throughput. 12 stations typically produces 150–600 pcs/h; higher station counts increase output proportionally. Sea Melody recommends the right model based on your specific product (diameter, neck size) and daily production target. Share your product specifications with us and we will recommend the optimal model. Visit our Custom Orders page to start.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — visit our Custom Orders page to discuss your requirements.
Pipeline gas or LPG, oxygen for combustion support, and electrical power as specified.
No — a full operation manual is supplied. Remote video training provided free.
7×24 remote support. An engineer is assigned before shipment. See our After-Sales Support page.
Yes. Sea Melody manufactures under an ISO 9001:2015-certified quality management system, and this machine is built to meet CE requirements for export markets. Quality and compliance certificates are provided on request and during the quotation process.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. Learn more about Sea Melody →
