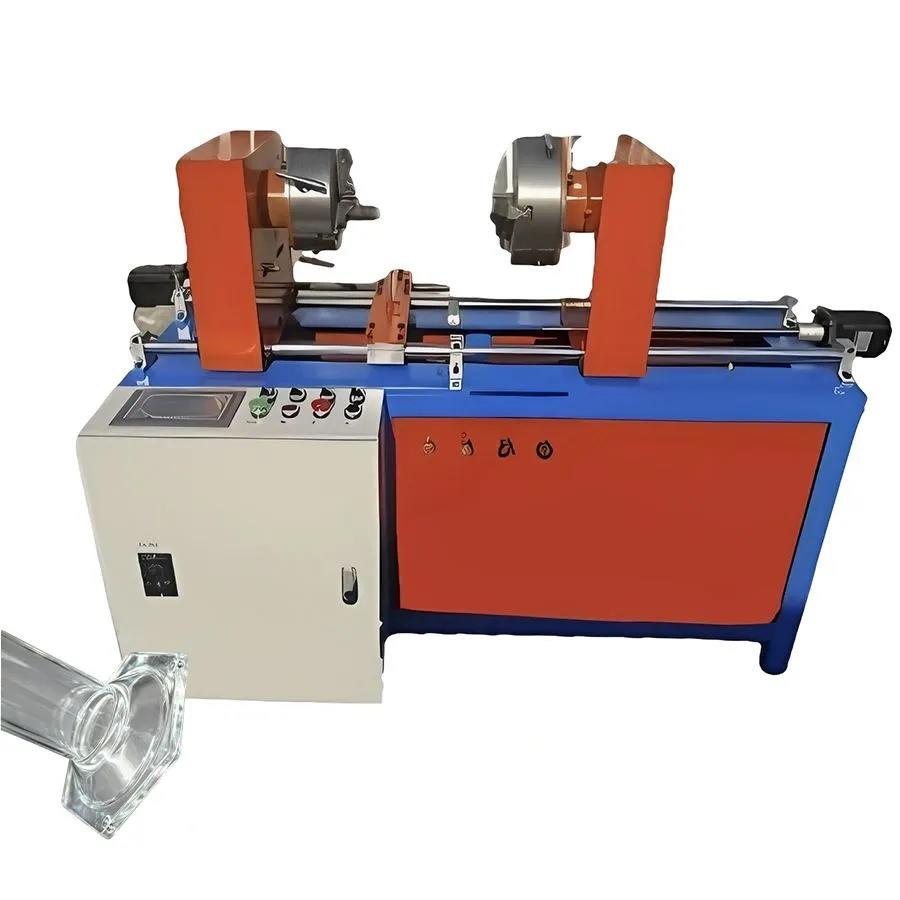

SM-J10 horizontal type cylinder base welding machine. Swing-mode heating for even glass fusion. Single station, one-button operation. Tube diameter Φ30–85mm, output 30 pcs/h. 2–3 units operable by one worker.
The SM-J10 Cylinder Base Welding Machine is a horizontal, single-station machine for welding glass bases to measuring cylinder tubing. It uses a swing-mode heating system that moves the heat source around the join point, ensuring even heating of the glass circumference for a strong, seamless bond. Wide tube diameter range (Φ30–85mm) is supported on the same machine without tooling changes. Simple one-button operation means 2–3 units can be run by a single operator.
For higher-output double-station production, see the SM-J76 Vertical Double Station Cylinder Base Welding Machine.
| Parameter | Value |
|---|---|
| Type | Horizontal, Single Station |
| Tube Diameter | Φ30–85mm |
| Output | 30 pcs/h |
| Power | 0.2 kW |
| Machine Dimensions | 1.70 × 0.70 × 1.20 m |
| Weight | 300 kg |
The SM-J10 is a horizontal single-station machine suited to smaller-scale production or space-constrained workshops — simple to operate with 2–3 units manageable by one worker. The SM-J76 is a vertical double-station machine with higher output per operator hour, suited to larger production lines.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — diameter range, output speed, and additional processing functions can be modified. Visit our Custom Orders page to discuss your requirements.
Pipeline gas or LPG as fuel, oxygen as combustion support, and 380V three-phase electrical power. Specific consumption figures are in the specifications table above.
No — a full operation and maintenance manual is supplied. Most operators can install, commission, and run the machine following the manual. Remote video training is also provided free of charge.
All machines include 7×24 remote support via phone, video call, or messaging. An engineer is assigned to your machine before shipment. See our After-Sales Support page for full details.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
