SM-J22 glass tube cutting machine with integrated edge polishing. Two models: Model A for Φ12–18mm tubes, Model B for Φ20–30mm. Output 700–900 pcs/h. Cuts and polishes in one automated pass.
A glass tube cutting machine is a machine that cuts lengths of glass tubing into precisely sized sections, using a rotating tube feed and a controlled cutting action to deliver flat, chip-free cut ends across multiple tube diameters.

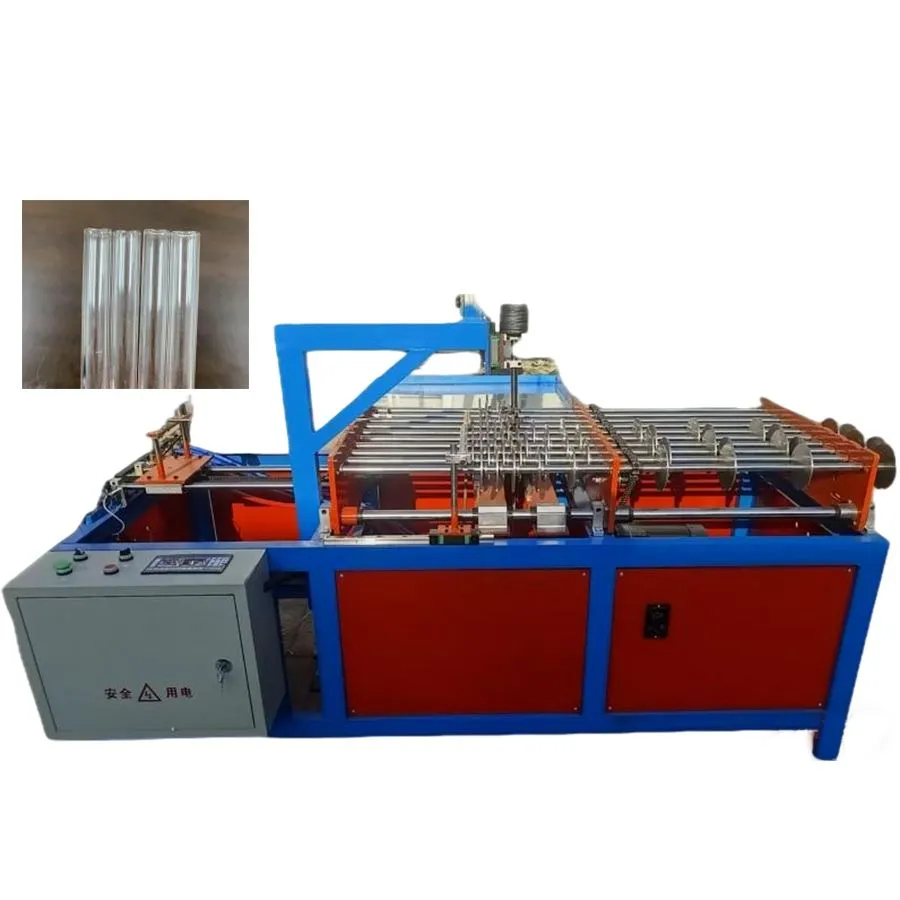

The SM-J22 Glass Tube Cutting Machine cuts small and medium diameter glass tubes while simultaneously polishing the cut edges — eliminating a separate polishing step from your production line. Two models are available: Model A for Φ12–18mm tubes and Model B for Φ20–30mm tubes. Both use an automatic intelligent design with a convenient material tray loading system for fast, continuous operation. Every machine is built under Sea Melody’s ISO 9001:2015-certified quality management system.
| Model | Tube Diameter (mm) | Cut Length (mm) | Output (pcs/h) | Power | Dimensions (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| A | Φ12–18 | 125–350 | 700–900 | 0.5 kW | 2.15 × 1.5 × 1.3 | 500 |
| B | Φ20–30 | 45–260 | 700–900 | 0.5 kW | 2.15 × 1.5 × 1.3 | 500 |
Yes — the SM-J22 integrates cutting and edge polishing in a single automated pass. This eliminates the need for a separate polishing machine or manual finishing, reducing production time and labour cost.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — specifications can be modified for your production requirements. Visit our Custom Orders page to discuss.
Pipeline gas or LPG, oxygen for combustion support, and 380V three-phase power (or 220V where specified). Consumption figures are in the specifications table above.
No — a full operation and maintenance manual is supplied. Remote video training is provided free of charge.
7×24 remote support via phone, video call, or messaging. An engineer is assigned to your machine before shipment. See our After-Sales Support page for full details.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
