Household Glassware Machinery
SM-J73 laser glass cutting and trimming machine. Non-contact laser trimming for blown glassware. Diameter Φ50–220mm, length 80–350mm. Output 360 pcs/h. Suitable for large and thick-walled glass that blade-based cutters cannot handle.
A laser glass cutting and trimming machine is a machine that uses a focused laser beam to cut and finish glassware cleanly without mechanical blade contact, producing smooth, crack-free edges and reducing breakage on delicate glass.

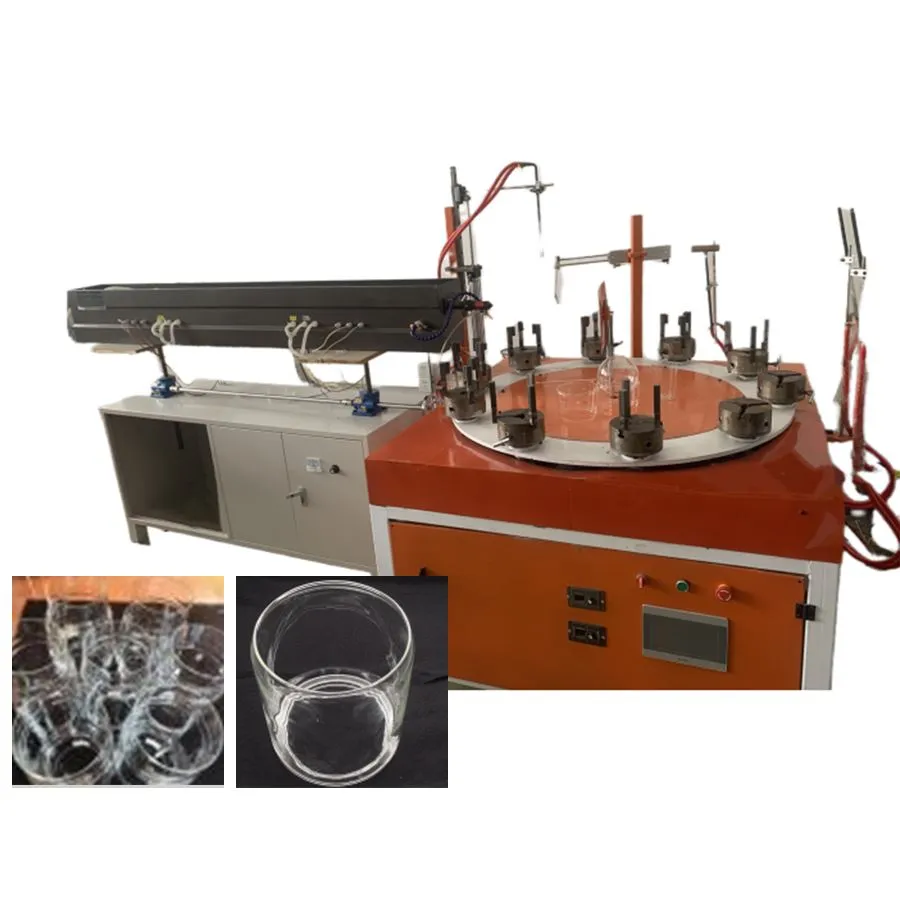

The SM-J73 Laser Cutting & Trimming Machine is a non-contact glass trimming solution for cutting off and polishing excess sections on blown glassware. Unlike traditional blade-based methods, laser cutting does not physically touch the glass, eliminating the risk of cracking, chipping, or stress fractures — making it the ideal choice for large, thick, or irregularly shaped blown glass products that cannot be trimmed by conventional cutters. The machine covers a diameter range of Φ50–220mm with a separate polishing rotary table. Every machine is built under Sea Melody’s ISO 9001:2015-certified quality management system.
| Parameter | Value |
|---|---|
| Tube/Glass Diameter | Φ50–220mm |
| Product Length | 80–350mm |
| Output | 360 pcs/h |
| Power | 5 kW |
| Gas Consumption | 3.5 kg/h |
| Oxygen Consumption | 40 L/h |
| Laser Unit Dimensions | 2.0 × 0.5 × 1.3 m |
| Polishing Table | Rotary, Φ1.1m |
| Weight | 350 kg |
Laser trimming is non-contact — there is no physical blade touching the glass, so there is no risk of cracking, chipping, or stress fractures at the cut point. This is especially important for large, thick, or irregularly shaped blown glass where blade pressure would cause breakage. Laser trimming also produces a cleaner edge that requires less polishing.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — specifications can be modified for your production requirements. Visit our Custom Orders page to discuss.
Pipeline gas or LPG, oxygen for combustion support, and 380V three-phase power (or 220V where specified). Consumption figures are in the specifications table above.
No — a full operation and maintenance manual is supplied. Remote video training is provided free of charge.
7×24 remote support via phone, video call, or messaging. An engineer is assigned to your machine before shipment. See our After-Sales Support page for full details.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
