SM-J6&8 linear type glass jar and beaker machine for borosilicate and soda lime glass. Produces 2 beakers per tube cycle. Four models covering 50ml to 1,000ml+, output 700–1,200 pcs/h. Optional eagle mouth forming.

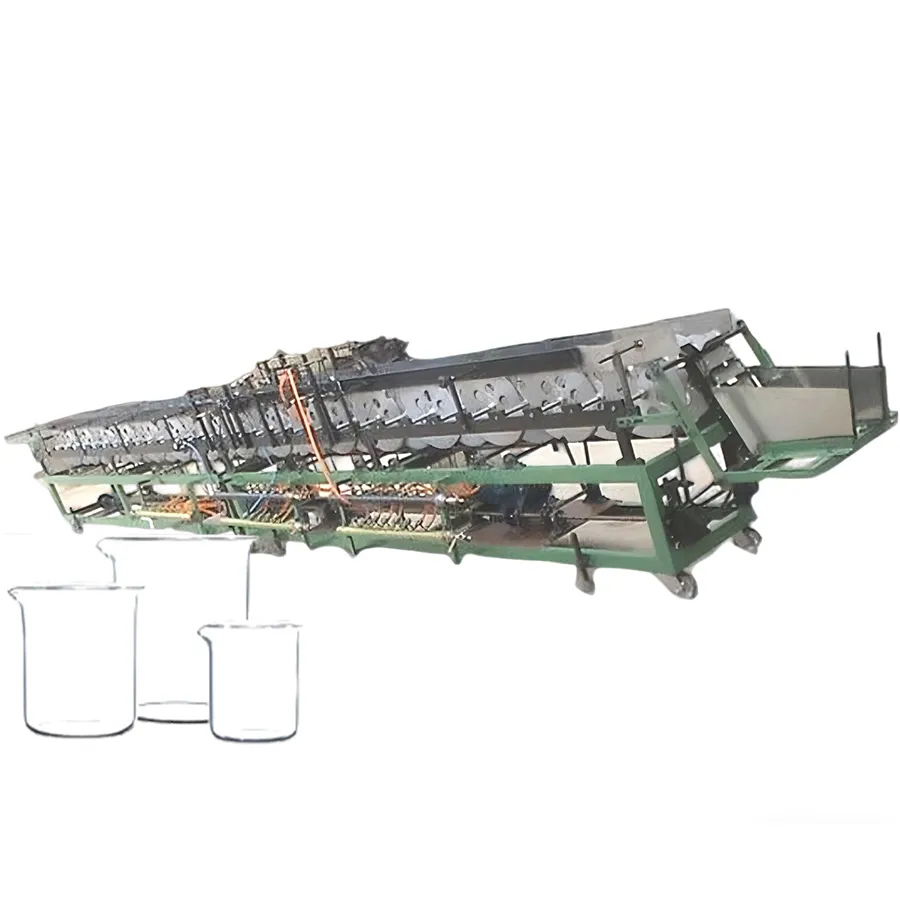

The SM-J6&8 Linear Type Glass Jar & Beaker Machine is an automated production line for manufacturing glass beakers and jars from borosilicate or soda lime glass tubing. Double-length glass tubes are loaded from the hopper and fed one by one onto the conveyor, where both edges are polished, the tube is split, and bottom sealing is applied — producing two finished beakers per tube. An optional eagle mouth forming function is available. Four models (A, B, C, D) cover beaker volumes from 50ml to 1,000ml+.
| Model | Volume | Tube Diameter (mm) | Wall Thickness (mm) | Output (pcs/h) | Power | Gas | Oxygen | Dimensions (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| A | 50–150 ml | Φ42–58 | 1.2–1.8 | 1,200 | 2.2 kW | 18 kg/h | 220 L/h | 9.2 × 1.1 × 1.4 | 1,400 |
| B | 100–500 ml | Φ58–80 | 1.8–3.0 | 1,000 | 2.2 kW | 22 kg/h | 260 L/h | 11.5 × 1.1 × 1.4 | 1,850 |
| C | 500–1,000 ml | Φ80–100 | 1.8–3.0 | 800 | 2.2 kW | 25 kg/h | 230 L/h | 13.2 × 1.22 × 1.46 | 2,300 |
| D | 1,000 ml+ | Φ100–120 | 1.8–3.0 | 700 | 2.8 kW | 27.5 kg/h | 352 L/h | 15.0 × 1.25 × 1.46 | 2,500 |
Each model is designed for a different beaker volume and tube diameter range. Model A covers 50–150ml beakers (Φ42–58mm tubes), Model B covers 100–500ml (Φ58–80mm), Model C covers 500–1,000ml (Φ80–100mm), and Model D covers larger formats (Φ100–120mm). Select based on the primary beaker volume your production requires.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — specifications including tube diameter range, output speed, and additional processing functions can be modified to meet your production needs. Visit our Custom Orders page to discuss your requirements with our engineering team.
The machine requires pipeline gas or LPG as fuel, oxygen as combustion support, and 380V three-phase electrical power. Specific consumption figures are listed in the specifications table above.
No. A full operation and maintenance manual is supplied with each machine. Most operators can install, commission, and run the machine following the manual. Remote video training is also provided free of charge.
All machines include 7×24 remote after-sales support via phone, video call, or messaging. An engineer is assigned to your machine before shipment. See our After-Sales Support page for full details.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
