SM-J96 vertical ultrasonic bottle washing machine for glass vials and ampoules. Multi-step process: ultrasonic cleaning, boiling water rinse, compressed air purge, pure water precision cleaning. Output 150 bottles/min. 316L stainless for water-contact parts.

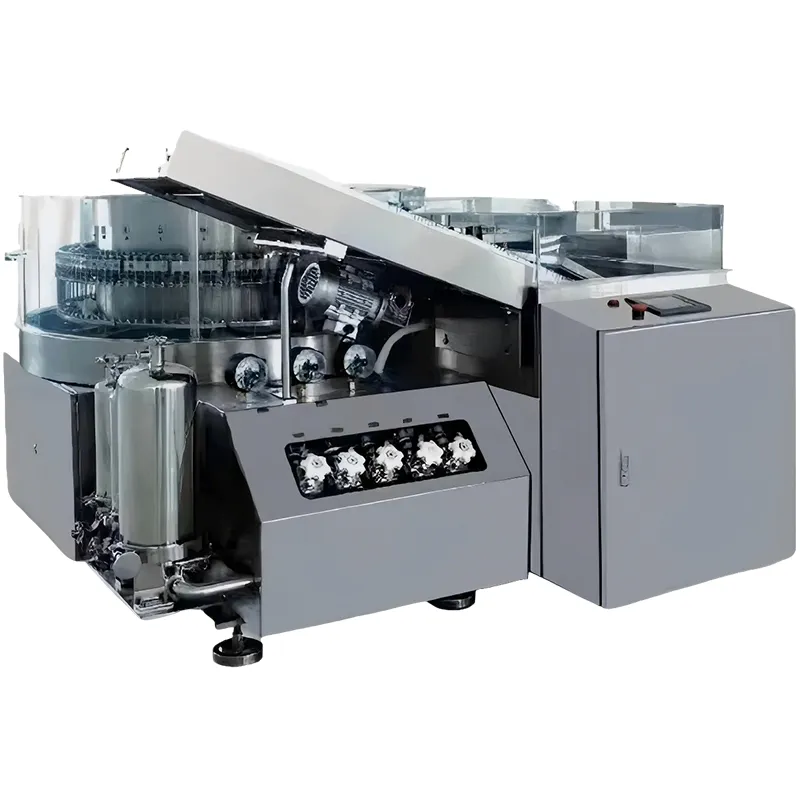

The SM-J96 Vertical Ultrasonic Bottle Washing Machine is a dedicated pharmaceutical-grade cleaning system for glass vials and ampoules. Bottles pass through a multi-stage cleaning sequence: initial ultrasonic immersion cleaning, boiling water rinse, purified compressed air purge, pure water or distilled water precision cleaning, and final clean compressed air purge. All water-contact parts are 316L stainless steel for pharmaceutical compliance. PLC control with touch screen and variable frequency speed regulation.
| Parameter | Value |
|---|---|
| Output | 150 bottles/min |
| Suitable For | Glass vials and ampoules |
| Circulating Water | 0.6 m³/h at 0.2–0.3 MPa |
| Purified Water | 0.5 m³/h at 0.2–0.3 MPa |
| Compressed Air | 20 m³/h at 0.3–0.4 MPa |
| Power Supply | 220V/380V, 50/60Hz, 3-phase 4-wire |
| Power | 3.6 kW |
| Machine Dimensions | 2,350 × 1,950 × 1,500 mm |
| Water-Contact Material | 316L stainless steel |
Product demonstration video coming soon. Visit our YouTube channel.
316L stainless steel has superior corrosion resistance to the purified water, cleaning agents, and pharmaceutical process fluids used in vial washing. It is the standard material specification for pharmaceutical process equipment (GMP-compliant). The SM-J96 uses 316L for all surfaces that contact water or cleaning fluid, with 304 stainless for outer panels and nylon for bottle-contact parts that require gentler contact.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — visit our Custom Orders page.
Electrical power as specified. Water and compressed air where indicated.
No — a full operation manual is supplied. Remote video training free.
7×24 remote support. Engineer assigned before shipment. See our After-Sales Support page.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
