A high-output 6-needle ampoule filling and sealing machine producing 8,100–12,000 ampoules per hour. PLC-controlled with rectangular feeding to prevent breakage — handles 1–20 ml glass ampoules for pharmaceutical, veterinary, and cosmetic production.
An ampoule filling and sealing machine is an automated system that doses liquid medication into glass ampoules and then hermetically seals each ampoule with a high-temperature flame, producing sterile, tamper-proof units ready for pharmaceutical packaging.

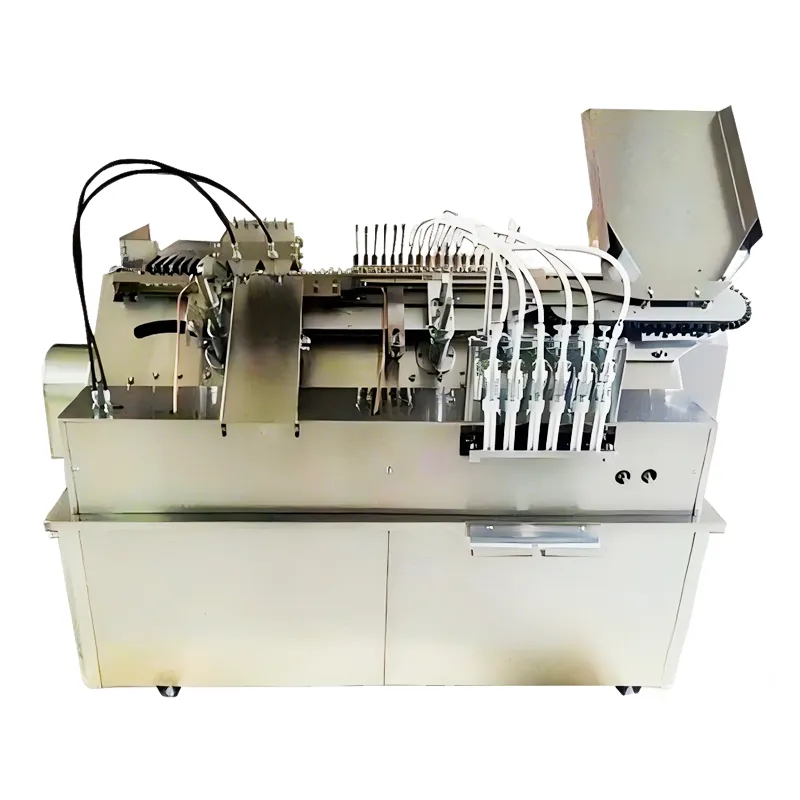

This 6-needle ampoule filling and sealing machine is a high-output pharmaceutical packaging machine designed for the automated filling and hermetic sealing of glass ampoules. Developed from Sea Melody’s proven ampoule drawing, filling and sealing platform, the SM-J41 incorporates a rectangular feeding system to eliminate ampoule breakage and ensure a consistent, steady production flow.
Need a different output level? Compare all ampoule filling machine models →
Engineered with Sea Melody’s proprietary PLC automation, the machine delivers precision dosing across all 6 filling needles simultaneously, maintaining tight fill-volume tolerances even at peak throughput. Suitable for pharmaceutical companies, veterinary medicine manufacturers, and laboratory glass producers. Every machine is built under Sea Melody’s ISO 9001:2015-certified quality management system and supplied CE-compliant for international markets.
| Parameter | Value |
|---|---|
| Output Capacity | 8,100 – 12,000 pcs/h |
| Ampoule Sizes | 1-5 ml / 5-10 ml / 5-20 ml |
| Number of Needles | 6 |
| Power Consumption | 0.55 kWh |
| Oxygen Consumption | 12 kg/h |
| Machine Dimensions | 1.98 x 1.0 x 1.5 m |
| Machine Weight | 470 kg |
| Control System | PLC (Sea Melody proprietary) |
| Gas Supply | Natural gas / LPG / coal gas + oxygen |
This machine accommodates three ampoule size ranges: 1-5 ml, 5-10 ml, and 5-20 ml. Changeovers between sizes are straightforward using the supplied operation manual.
It uses natural gas (LPG or coal gas) combined with oxygen for the sealing flame. Oxygen consumption is approximately 12 kg/h. Electrical power draw is 0.55 kWh.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes. Our engineering team can adjust fill volumes, needle count, and feeding parameters. Contact us to discuss your specification, or visit our Custom Orders page to learn more about our bespoke process.
Sea Melody provides 24/7 remote support with a guaranteed 5-minute response time. Online video commissioning, operation manuals, and free technical training are included. See our After-Sales Support page for full details.
This machine achieves 8,100 to 12,000 ampoules per hour depending on ampoule size and fill volume.
Yes. Sea Melody manufactures under an ISO 9001:2015-certified quality management system, and the SM-J41 is built to meet CE requirements for export markets. Quality and compliance certificates are provided on request and during the quotation process.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. Learn more about Sea Melody →
