High-output 8-needle ampoule filling and sealing machine for large-scale pharmaceutical production. Rectangular feeding system, PLC control, FDA-compliant. Handles 1–20ml ampoules.
An ampoule filling and sealing machine is an automated system that doses liquid medication into glass ampoules and then hermetically seals each ampoule with a high-temperature flame, producing sterile, tamper-proof units ready for pharmaceutical packaging.

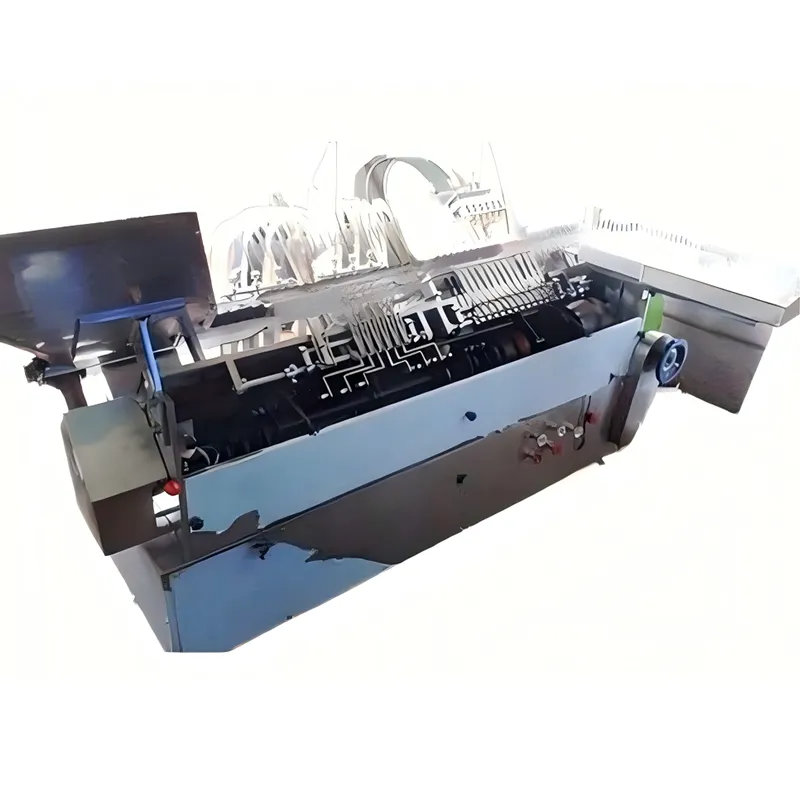

The SM-J42 8-Needle Ampoule Filling & Sealing Machine is a high-output pharmaceutical packaging machine designed for large-scale ampoule production lines. Eight filling needles operate simultaneously, delivering the highest throughput in Sea Melody’s ampoule filling range. Like the SM-J39 and SM-J41, it incorporates a rectangular feeding system to minimise ampoule breakage and a PLC intelligent control system for precise, repeatable dosing.
Need a different output level? Compare all ampoule filling machine models →
All product-contact parts are 304 stainless steel and FDA compliant. The SM-J42 integrates directly with upstream ampoule forming machines and downstream inspection and packaging equipment.
| Parameter | Value |
|---|---|
| Number of Needles | 8 |
| Ampoule Sizes | 1ml, 2ml, 5ml, 10ml, 20ml |
| Feeding System | Rectangular (reduces breakage) |
| Control System | PLC intelligent control |
| Contact Parts | 304 stainless steel — FDA compliant |
| Sealing Method | Oxy-gas flame sealing |
Product demonstration video coming soon. Visit our YouTube channel to see Sea Melody machines in action.
The SM-J42 has 8 needles and is designed for the highest-volume production lines. The SM-J41 (6 needles) suits large to mid-scale operations, while the SM-J39 (2 needles) is ideal for smaller runs or specialist formats. All three share the same rectangular feeding system and PLC platform.
The machine handles 1ml, 2ml, 5ml, 10ml, and 20ml ampoules. Changeovers between sizes follow the operation manual guidelines.
Yes — all product-contact parts are 304 stainless steel manufactured to FDA compliance standards. Material certificates are available on request.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — Sea Melody can modify needle count, fill volumes, and feed configurations. Visit our Custom Orders page to discuss your requirements.
Sea Melody provides 24/7 remote support with a 5-minute response time, online video commissioning, operation manuals, and spare parts supply. See our After-Sales Support page for full details.
Yes. Sea Melody manufactures under an ISO 9001:2015-certified quality management system, and this machine is built to meet CE requirements for export markets. Quality and compliance certificates are provided on request and during the quotation process.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. Learn more about Sea Melody →
