Household Glassware Machinery
SM-J13/J60 hookah tip and tube forming machine. Flame-working with interchangeable moulds for consistent glass hookah mouthpiece tips and connecting tubes in borosilicate or soda-lime glass.

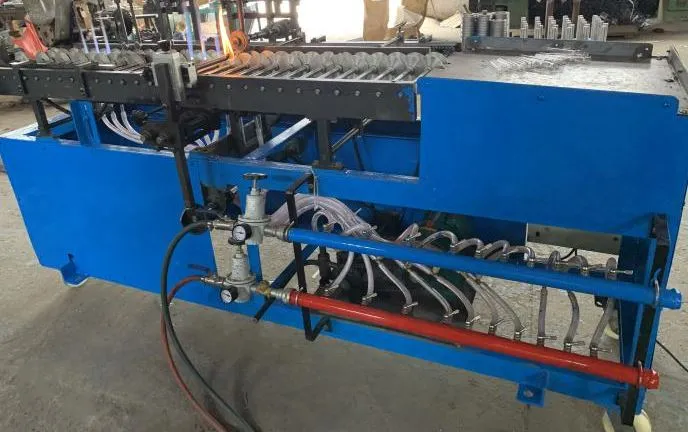

The SM-J13/J60 Hookah Tip and Tube Forming Machine is a specialised glass processing machine designed for the production of glass hookah mouthpiece tips, connecting tubes, and related components. Combining the forming capabilities of the SM-J13 and SM-J60 models, this machine handles both the tip shaping and tube forming operations required for complete hookah glassware production.
The machine applies controlled flame-working to form glass tubes into the characteristic curved or tapered profiles used in hookah tip and tube assemblies. PLC control ensures consistent forming quality, while interchangeable moulds allow rapid changeover between different tip styles and sizes.
Sea Melody has supplied hookah and shisha glassware machinery to manufacturers across the Middle East, South Asia, and Europe, and the SM-J13/J60 reflects our extensive experience in this specialised market segment.
| Parameter | Value |
|---|---|
| Model | SM-J13 / SM-J60 |
| Product Type | Hookah Tip / Tube |
| Glass Type | Borosilicate / Soda-lime |
| Forming Method | Flame-working with forming moulds |
| Control System | PLC + Touchscreen |
| Power | 0.75 kW |
| Gas Consumption | LPG 1.5 kg/h |
| Oxygen Consumption | 18 L/h |
The SM-J13/J60 is used by glass manufacturers producing:
Video coming soon. Contact us to request a product demonstration.
The Hookah Tip/Tube Forming Machine processes glass tubes suitable for hookah mouthpiece tips and connecting tubes, typically working with standard borosilicate or soda-lime glass tubes in diameters of 10–25mm. Contact us with your specific tube and tip geometry requirements.
The SM-J13/J60 is designed for continuous production of hookah tips and tubes. Contact us for specific output rates based on your tip size and glass tube diameter, as production speed varies by product configuration.
Yes. We can customise forming moulds and tooling for different tip geometries, diameters, and lengths. Visit our Custom Orders page to discuss your hookah glassware production requirements.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
All machines carry a 12-month warranty with 7×24 remote support available. See our After-Sales Support page for full details.
Yes. Free online technical training, operation manuals, and installation videos are included. On-site training can be arranged upon request.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
