SM-J19 linear type glass socket and cone joint forming machine. Multi-station PLC-controlled production of standard and custom ground glass joint connections for laboratory glassware assembly.

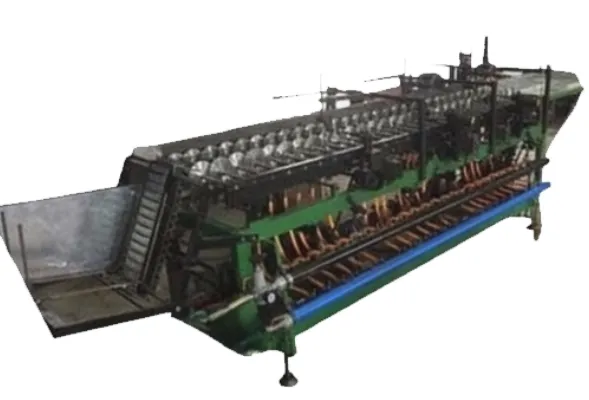

The SM-J19 Linear Type Socket and Cone Machine is a specialised glass forming machine for the production of standard ground glass joint connections — the interchangeable socket (female) and cone (male) joints used to connect laboratory glassware components. These precision ground joints are a fundamental component of modular laboratory glassware assemblies worldwide.
The machine uses a linear multi-station configuration to form the tapered socket and cone profiles on glass tube ends. Each station applies controlled flame-heating and forming pressure to create the accurate taper angle and surface finish required for an airtight glass-to-glass seal — critical in laboratory distillation, synthesis, and gas handling applications.
Sea Melody has supplied laboratory glassware joint forming machines to manufacturers in Europe, Asia, and the Middle East, and the SM-J19 is designed to meet the precise dimensional requirements of international laboratory glassware standards.
| Parameter | Value |
|---|---|
| Model | SM-J19 |
| Product Type | Glass Socket and Cone Joints |
| Machine Type | Linear multi-station |
| Glass Type | Borosilicate |
| Tube Diameter | Φ16–25mm |
| Output | 600–1,200 pcs/h |
| Consumption | 1.5 kWh; gas 1.9 kg/h; oxygen 0.8 bottles/h |
| Machine Dimensions | 4.2 × 0.9 × 1.2 m |
| Weight | 460 kg |
| Joint Sizes | 14/23, 19/26, 24/29, 29/32 (standard + custom) |
| Control System | PLC + Touchscreen |
| Power Supply | 380V / 50Hz |
| Fuel | LPG or Natural Gas + Oxygen |
The SM-J19 produces glass ground joint components for:
Video coming soon. Contact us to request a product demonstration.
The SM-J19 Linear Type Socket/Cone Machine processes borosilicate glass tubes to form socket and cone joint connections in standard laboratory ground joint sizes (e.g. 14/23, 19/26, 24/29, 29/32). Contact us with your specific joint size requirements.
The SM-J19 features a linear multi-station design for continuous production of glass socket and cone joints. Contact us for specific output rates based on your joint size and glass tube diameter.
Yes. Forming tooling can be produced for any standard or custom ground joint size. Visit our Custom Orders page to discuss your specific joint manufacturing requirements.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
All machines carry a 12-month warranty with 7×24 remote support. See our After-Sales Support page for full details.
Yes. Free online training, manuals, and installation videos are included. On-site training can be arranged on request.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
