Household Glassware Machinery
SM-J12 rotary threading machine with 12 or 18 stations. PLC-controlled with auto loading/unloading. Diameter ≤120mm, output 480 pcs/h. Optional reshaping, robots, and vertical configuration for larger products.

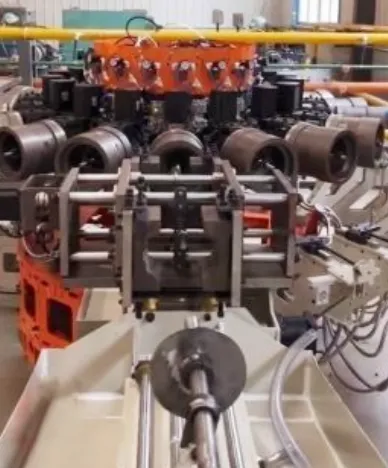

The SM-J12 Rotary Threading Machine is designed for high-volume threading on glass bottles and containers, as well as reforming and shaping of glass tubing. Available in 12-station and 18-station configurations, it uses a rotating table design with PLC control and built-in automatic loading and unloading. Optional features include reshaping functions, robotic integration, and a vertical-type configuration for processing larger products. Handles glass containers up to Φ120mm diameter.
| Parameter | Value |
|---|---|
| Stations | 12 or 18 (rotating table) |
| Max Tube Diameter | Φ120mm |
| Tube Length | 100–300mm |
| Output | 480 pcs/h |
| Power | 6.5 kW |
| Footprint | 5 m² |
| Weight | 2,000 kg |
18 stations provides higher effective throughput since more pieces are in-process simultaneously — the output figure assumes 12 stations. For higher daily production targets, the 18-station configuration is recommended. Share your required output and product diameter with us and we will recommend the right station count. Visit our Custom Orders page for more information.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — visit our Custom Orders page.
Pipeline gas or LPG, oxygen, and electrical power as specified in the table above.
No — full operation manual supplied. Remote video training provided free.
7×24 remote support. Engineer assigned before shipment. See our After-Sales Support page.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
