SM-J76C cylinder base welding machine. Swing-mode heating for even glass fusion, automatic touch screen control, high precision. Diameter D30–85mm, output 30 pcs/h. For measuring cylinders and glass containers.

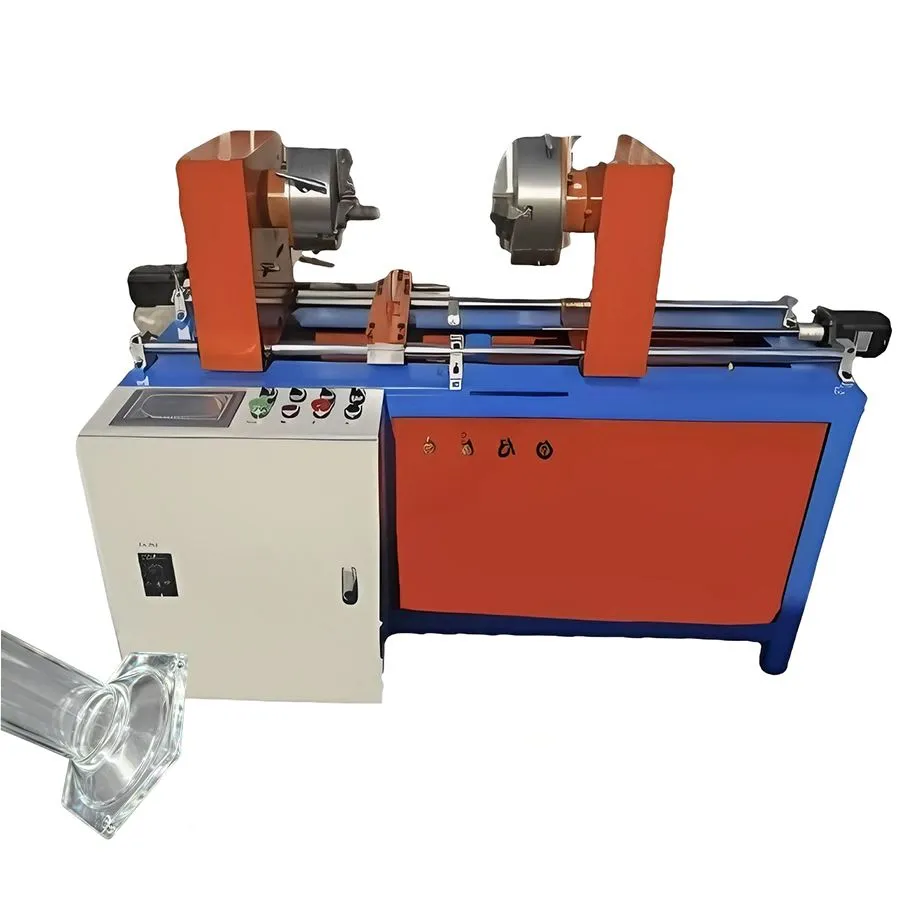

The SM-J76C Cylinder Base Welding Machine welds the base of measuring cylinders to the glass tube body. It uses a swing-mode heating system that moves the fire head around the join point for even, symmetric heating — producing a flat, mark-free weld joint. Automatic control with touch screen and high-precision construction make the SM-J76C suitable for high-quality measuring instrument glass production. Maximum welding diameter is 85mm.
| Parameter | Value |
|---|---|
| Tube Diameter | D30–85mm |
| Max Weld Diameter | 85mm |
| Output | 30 pcs/h |
| Power | 2 kW |
| Gas Consumption | 1.6 kg/h |
| Oxygen Consumption | 16 L/h |
| Machine Dimensions | 1.70 × 0.70 × 1.20 m |
| Weight | 300 kg |
| Control | Automatic + Touch Screen |
The SM-J76C features automatic touch screen control and higher power (2kW with gas + oxygen heating), making it suitable for precision scientific glassware production. The SM-J10 is a simpler 1-button operation unit suited for general industrial cylinder production. Choose SM-J76C when precision and automation are priorities.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — specifications can be modified. Visit our Custom Orders page.
Pipeline gas or LPG, oxygen for combustion support, and electrical power as specified above.
No — a full operation manual is supplied. Remote video training provided free.
7×24 remote support. An engineer is assigned before shipment. See our After-Sales Support page.
