Household Glassware Machinery
SM-J23 handle attaching machine with 2 stations for high output. Attaches glass handles to teapots, beakers, and glass containers. Tube diameter Φ55–95mm / 85–130mm. Output 360 pcs/h.

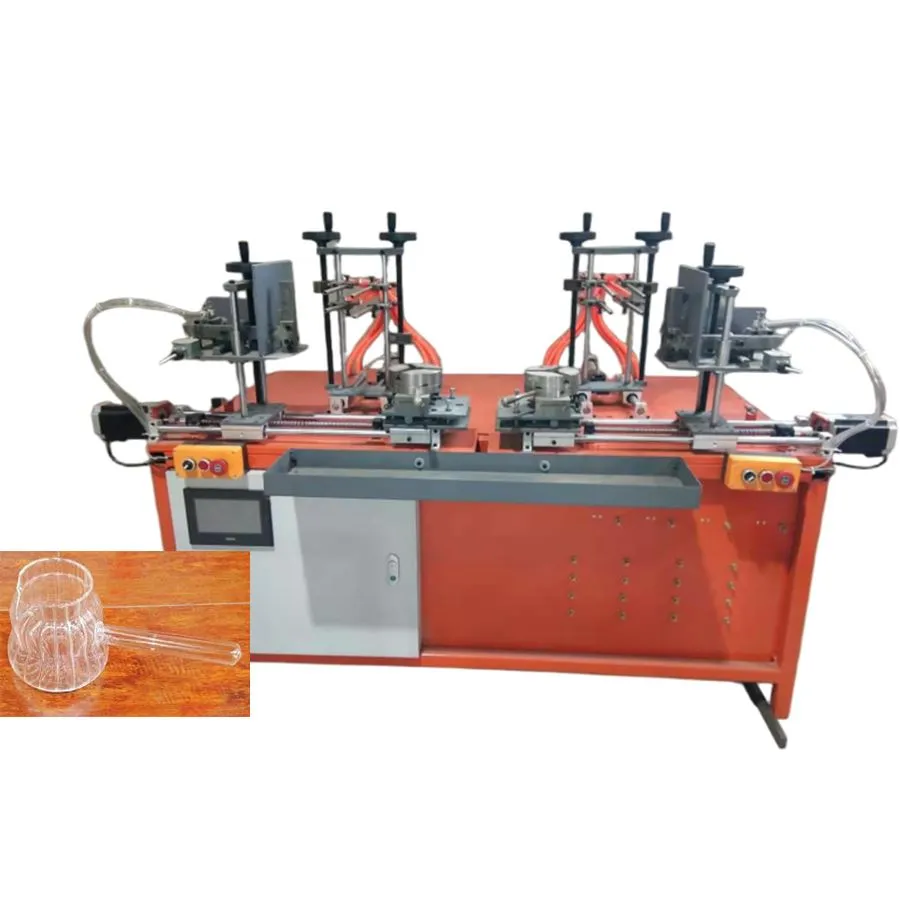

The SM-J23 Handle Attaching Machine is a newly developed, high-efficiency machine for attaching glass handles to teapots, beakers, coffee pots, and other glass containers. Equipped with 2 stations operating simultaneously, it doubles the output compared to single-station alternatives. The machine handles two tube diameter ranges (Φ55–95mm and Φ85–130mm) covering the most common handle attachment applications.
| Parameter | Value |
|---|---|
| Tube Diameter | Φ55–95mm / Φ85–130mm |
| Output | 360 pcs/h |
| Power | 0.75 kW |
| Gas Consumption | 3.5 kg/h (0.2 MPa) |
| Oxygen Consumption | 40 L/h (0.2 MPa) |
| Machine Dimensions | 1.95 × 1.20 × 1.20 m |
| Weight | 400 kg |
The SM-J23 is designed for glass teapots, coffee pots, jugs, and beakers within the diameter ranges Φ55–95mm and Φ85–130mm. For teapot-specific handle attaching using teapot-specific tooling, see also the Glass Teapot Handle Attaching Machine.
Standard lead time is 40 working days from order confirmation, as each machine is manufactured to order. For custom or modified machines, allow approximately 60 working days. Contact us for a specific timeline based on your requirements.
Yes — visit our Custom Orders page to discuss your requirements.
Pipeline gas or LPG, oxygen for combustion support, and electrical power as specified in the table.
No — a full operation manual is supplied. Remote video training provided free.
7×24 remote support. An engineer is assigned before shipment. See our After-Sales Support page.
This machine is designed and manufactured by Nantong Sea Melody Industrial Co., Ltd, a specialist glass machinery manufacturer based in Nantong, China, with over 24 years of experience. Sea Melody machines are currently operating in 35+ countries across pharmaceuticals, laboratory, and household glassware industries. All Sea Melody machines are produced under an ISO 9001:2015-certified quality management system. Learn more about Sea Melody →
